Prepare for marine emergencies
When youβve used up all your options to save yourself, the reliable
GME Accusat MT603FG Auto Release EPIRB will get
you the help you need during an emergency.
Why Have an EPIRB?
An EPIRB can save your life and the lives of others on board by
providing rescue authorities your precise location in the event of
an emergency. GME EPIRBs are self-contained 406 MHz radio
transmitters that emit an internationally recognised distress
signal on the COSPAS-SARSAT satellite system.
The GME Accusat MT603FG Auto Release EPIRB
contains a unique identity code which can be cross referenced to a
database of registered 406 MHz beacons, allowing the beaconβs owner
and vessel to be immediately identified in the event of an
emergency.
GPS Equipped
The MT603 GPS Series features an integrated 66
channel GPS receiver which automatically acquires the position and
relays the latitude and longitude of the beacon along with the
personal identifier and emergency signal to rescue authorities.
Additionally, each unit includes an ultra-high performance solid
state strobe and 121.5MHz VHF homing beacon to assist in guiding
rescuers to your precise location.
Water Activation
The MT603 GPS Series will automatically activate
when out of the bracket and deployed in water. The
MT603FG will automatically deploy and activate
when it reaches a depth of 1 metre in water. It can also be
manually activated by the operator in an emergency situation.

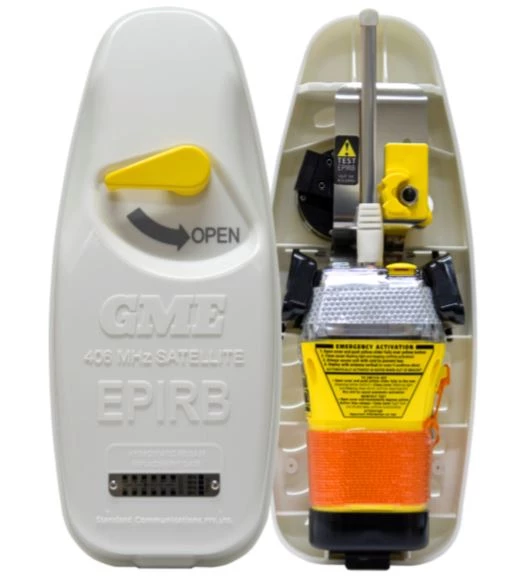

GME Accusat MT603FG Auto Release EPIRB
Features:
- Model number: MT603FG
- Category I Auto Release EPIRB
- Channels: 66 Channel GPS Receiver Location Accuracy
- MEOSAR Ready
- Operates with MEOSAR, LEOSAR and GEOSAR Satellite
Constellations - Activation: Water Activated + Auto Release + Manual
- Operation Time: 48 Hours Minimum Operation Time
- Warm Up: Zero Warm Up Digital Technology
- Certification: COSPAS-SARSAT Certified. Internationally
Approved For Worldwide Operation (C/S T.001) - Battery Life: 6 Year
- Warranty: 6 Year
GME Accusat MT603FG Auto Release EPIRB
Specifications:
Physical
- Operating Temperature: -20Β°C to +55Β°C Storage
- Temperature: -30Β°C to +70Β°C
- Weight: 550g (plus 1100g for housing)
- Compass Safe Distance: 0.7 m from magnetic navigational
device - Dimensions: 390 mm (H) x 155 mm (W) x 110 mm (D)
- Materials: UV stabilised plastic chassis
- Performance: AS/NZS 4280.1
Modes of Operation
- Activated:
UHF (406) and VHF (homer) complete with high intensity strobe and
audible activation alert - General Self Test:
Comprehensive internal diagnostics with visual and audible operator
feedback. UHF test message (inverted synchronisation compatible
with portable beacon testers) - GPS Self Test:
GPS acquisition test with visual and audible operator feedback UHF
test message containing GPS coordinates
Operation
- Activation: Water or Manually by operator
- Bracket Type: Auto Release
- Duration: 48 hours minimum
- Transmission Delay: 121.5 and 406 MHz distress signals commence
~ 50 seconds after activation - UHF: 406.040 MHz, 5 W Β± 2 dB, PSK (digital)
- Strobe: 20 flashes/ minute at greater than 0.75 CD effective
intensity - COSPAS-SARSAT: Certified to C/S T.001 (Class 2) requirements
UHF-Protocol/Data: Serial number*, Radio call sign or MMSI - Repetition Period: 50s mean, digitally generated randomisation
VHF: 121.5 MHz, 25 mw. Min PERP@25Β°C
Battery
- Replacement Period: Prior to expiry date marked on
case - Replacement Method: Service centre, or factory only (non-user
replaceable) - Chemistry: LiSO2 (2.4 g Lithium per cell)
- Configuration: 2 βDβ type cells
Note: Batteries are not user
replaceable. Replace after emergency activation or reaching the
marked expiry date, the EPIRB must be returned to GME or its
authorised service centre for battery replacement.
Other Features:
- GPS: Internal 66 channel high performance receiver with
quadrifilar helix antenna - Retention Lanyard: Reflector: Buoyant type approximately 5.5
metres long
SOLAS retro-reflective tape encircling unit above
waterline - Solid-state Strobe: High reliability solid state design exceeds
IMO requirements - Antenna: Flexible self straightening stainless steel
design - Bracket: Automatic release mechanism (float-free)
Retained by four (4) vessel fixing points
Note: *Standard factory setting,
subject to National requirements. Distributor-reprogrammable via
optical data interface. Specifications are subject to change
without notice or obligation.
